Smart Base offers better than OEM FI-1000 print experience!
More features than any FI-1000 manufacturer, anywhere, at any price!

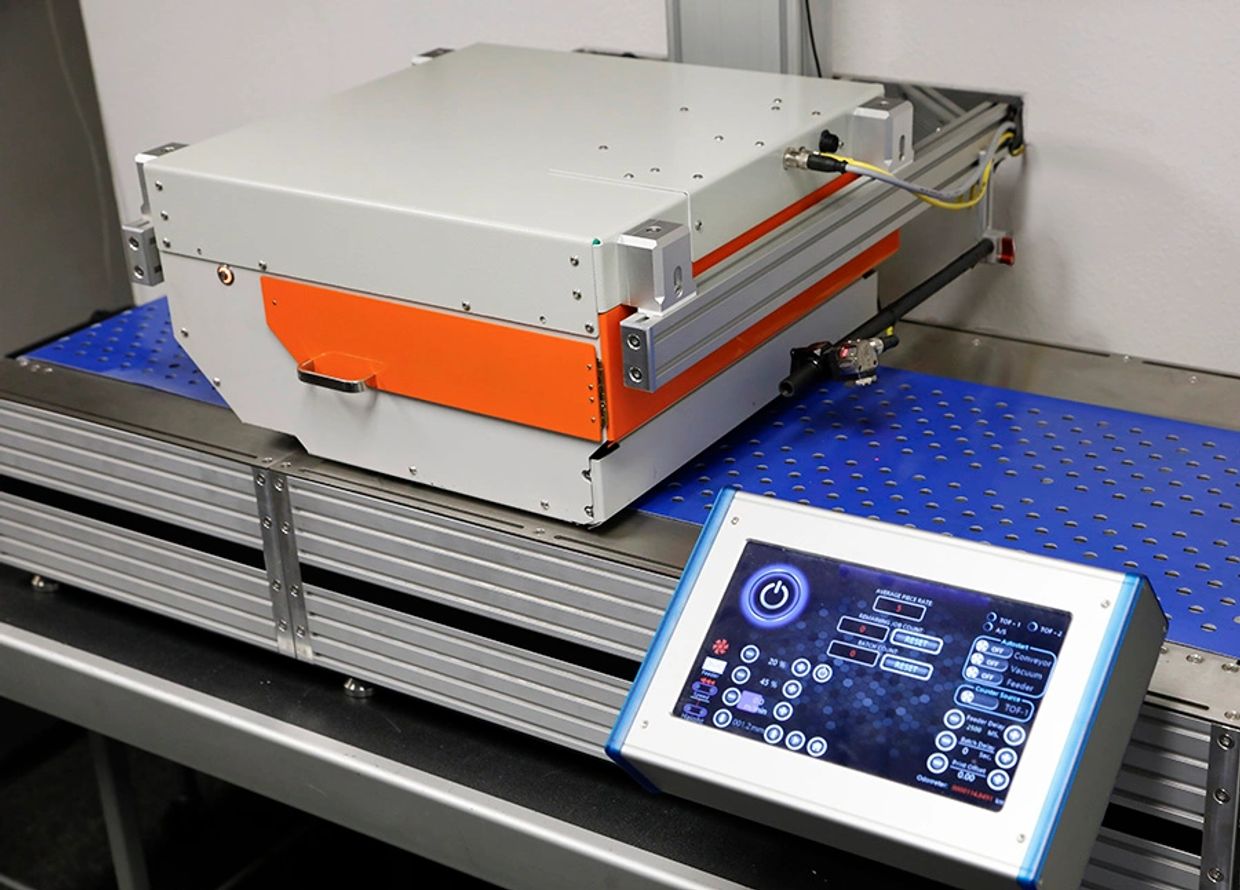

When paired with a Daniel Dynamics Smart Base, you can enjoy a rich feature set unmatched by ANY current FI-1000 OEM system.
- Available in 24", 32", 40", 48" and 56" configurations
- Easy to maintain! - Access all internal electronics and mechanical components without removing the printer. Not even to change the belt!
- Fully automatic, active belt tracking!
- Configurable up to 1200ft/min (365m/m) transport speeds
- Real time print offset adjustment built into the transport base with +/- 1" of range, completely independent of the printer or control computer!
- Full conveyor speed control
- Full feeder speed control
- Full Vacuum control
- Approx 10" of automated height adjustment with 0.1mm precision
- Adjustable batch counting
- Adjustable Job counting
- Adjustable feed delay between batches
- Automatic feed and conveyor stop when job complete
- Average piece rate display
- Dynamic print head mounting system allowing for fast and easy true full bleed or no feed printing, requiring no tools or settings adjustments of any kind to switch between modes!
- Can be configured to transport right to left, or left to right.
- Built in Xijet I/O board, so no external control box needed!
- Xijet available even on FI-1000 bases enabling dual print systems running at the same time, on the same base!
- Fully articulated full color HMI which can be relocated almost anywhere.
- Built in professional grade gigabit router for trouble free offline / secure installations, rock solid printer communication, and stable IP addressing.
- Up to SIX auxiliary relay outputs
- Dual selectable TOF sensors, either of which can manage piece count
Postmark AP-1170 Retrofit
Why upgrade your printer?
Is your Postmark AP-1170 no longer functioning properly?
Are you tired of complicated and time consuming BNB replacements and cumbersome print head leveling?
Is the touchscreen conflicting with with the PC based controller?

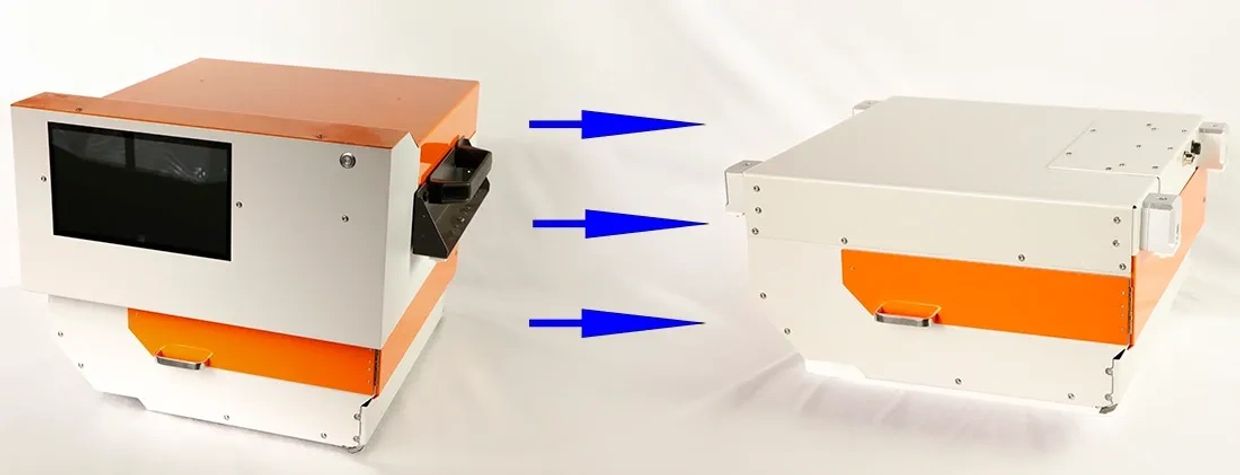

We will remove the problematic upper half of the printer, install and test new BNB, and provide a manual control box to those who wish to retain their Postmark transport base.
Using an FI-1000 printer from another manufacturer and would like the benefits of a Smart Base compatible printer, and for less than the cost of a new machine? Daniel Dynamics will soon have an FI-1000 retrofit for nearly nearly any manufacturers FI-1000 system.
Better than ever!
Once complete you can look forward to fewer connection issues with the control PC, no more flickering touch screen, and no more headaches trying to level the printer, and a final weight that is much lower, making the printer significantly easier to handle when it does need to be removed from it's base.
Post retrofit, the printer will have 1/2" of vertical adjustment via its very easy to use mounting blocks.

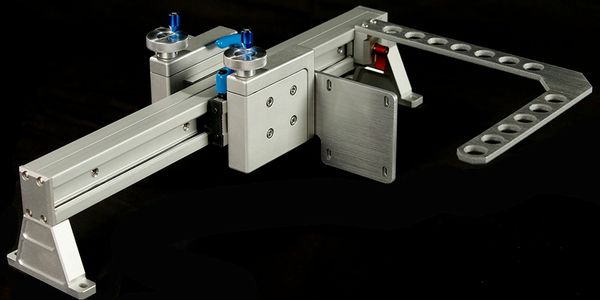

Xijet!
It's just better than the rest!

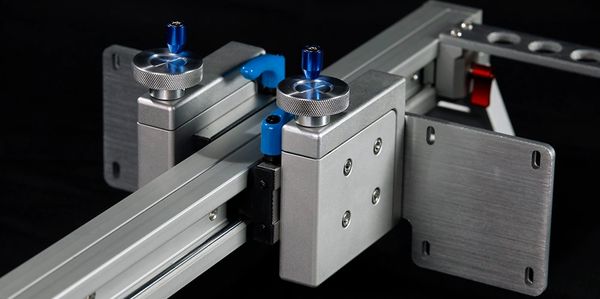

Featuring full length ball bearing slides for each print head, rear hinged and magnetically latched, and with a full 35mm of vertical ball bearing mounted print head adjustment makes system perhaps the best available.
Made for you!
Built to order in standard mounting widths of up to 800mm, suitable for up to two, four stall (2") Funai or HP print heads.
